1/4-28 Stainless Steel Flange Nuts Serrated Base Lock Anti Vibration Qty 25

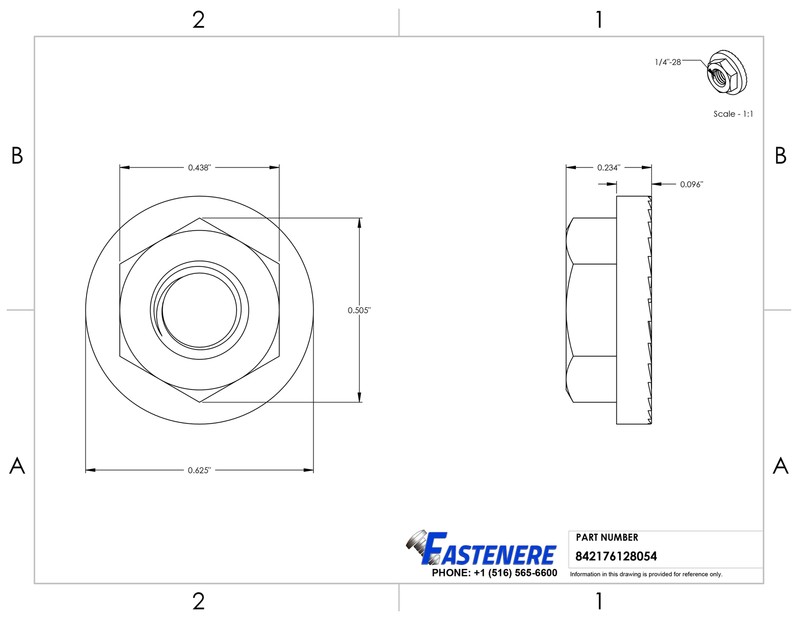

1/4-28 Stainless Steel Flange Nuts Serrated Base Lock Anti Vibration Qty 25 A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. These nuts have serrations on the integrated washer giving it a "locking" characteristic. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface. General Product Information Drive Style : Socket Drive Size : 7/16" Thread Size : 1/4-28 Material : Stainless Steel 304 Quantity of Fasteners in Package : 25 Detailed Product Information: Width - Flat to Flat : 7/16" Height / Thickness : 0.234" Width - Point to Point : 0.505" Threads Per Inch (TPI) : 28 Flange Diameter : 0.625" Coarse or Fine Thread : Fine Thread Direction : Right Hand Key Notes: Stainless steel flange nuts have a wide flange under the hex that acts as a washer which helps to evenly distribute pressure over the parts being secured as to not cause damage and making it less likely to loosen this type of lock nut uses displacement to provide a tight fit and requires slightly less torque when installing The serrations on the flange are positioned at an angle that bites into the material being fastened against to provent the nut from turning loose but will scratch or mar a surface so if using on a painted or coated surface and moisture could be an issue it is best to choose a fastener that will not run the risk of removing the coating and exposing the mating surface to the possibility oof corrosion Stainless steel serrated flange nuts work extremely well for oversized or irregularly shaped holes since the flange will cover any discrepancies on the mating surface allowing you to not have to use any washers which can speed up the assembly process also saving time and effor on your project Serrated flange nuts look like a hex nuts from one side but on the bottom side has a wide circular flange creating a bell like shape; also referred to as serrated face spin lock tooth nuts this type of nut provides better vibration resistance than a standard hex nut Made from stainless steel grade 304 which offers a high level of chemical and corrosion resistance that will out perform and out last all zinc plated fasteners for years with out the need to perform costly and time consuming maintenance Shipping: All orders placed before 3:30 pm EST Will Ship Same Day Tracking is provided on ALL Orders Priority Mail Shipping service is offered at a discount of only $3.95 UPS Ground UPS Next Day Air is available, Please inquire for pricing Returns : ALL returns are accepted if returned within 60 days. Money Back or exchange guaranteed. NO Restocking Fees. For YOU, we constantly strive to find ways of improving our performance.
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Brand | Fastenere |
| MPN | 4067478 |
| Drive Style | Socket |
| Thread Size Base | 1/4-28 |
1/4-28 Stainless Steel Flange Nuts Serrated Base Lock Anti Vibration Qty 25 A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. These nuts have serrations on the integrated washer giving it a «locking» characteristic. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface. General Product Information Drive Style : Socket Drive Size : 7/16″ Thread Size : 1/4-28 Material : Stainless Steel 304 Quantity of Fasteners in Package : 25 Detailed Product Information: Width – Flat to Flat : 7/16″ Height / Thickness : 0.234″ Width – Point to Point : 0.505″ Threads Per Inch (TPI) : 28 Flange Diameter : 0.625″ Coarse or Fine Thread : Fine Thread Direction : Right Hand Key Notes: Stainless steel flange nuts have a wide flange under the hex that acts as a washer which helps to evenly distribute pressure over the parts being secured as to not cause damage and making it less likely to loosen this type of lock nut uses displacement to provide a tight fit and requires slightly less torque when installing The serrations on the flange are positioned at an angle that bites into the material being fastened against to provent the nut from turning loose but will scratch or mar a surface so if using on a painted or coated surface and moisture could be an issue it is best to choose a fastener that will not run the risk of removing the coating and exposing the mating surface to the possibility oof corrosion Stainless steel serrated flange nuts work extremely well for oversized or irregularly shaped holes since the flange will cover any discrepancies on the mating surface allowing you to not have to use any washers which can speed up the assembly process also saving time and effor on your project Serrated flange nuts look like a hex nuts from one side but on the bottom side has a wide circular flange creating a bell like shape; also referred to as serrated face spin lock tooth nuts this type of nut provides better vibration resistance than a standard hex nut Made from stainless steel grade 304 which offers a high level of chemical and corrosion resistance that will out perform and out last all zinc plated fasteners for years with out the need to perform costly and time consuming maintenance Shipping: All orders placed before 3:30 pm EST Will Ship Same Day Tracking is provided on ALL Orders Priority Mail Shipping service is offered at a discount of only $3.95 UPS Ground UPS Next Day Air is available, Please inquire for pricing Returns : ALL returns are accepted if returned within 60 days. Money Back or exchange guaranteed. NO Restocking Fees. For YOU, we constantly strive to find ways of improving our performance.
