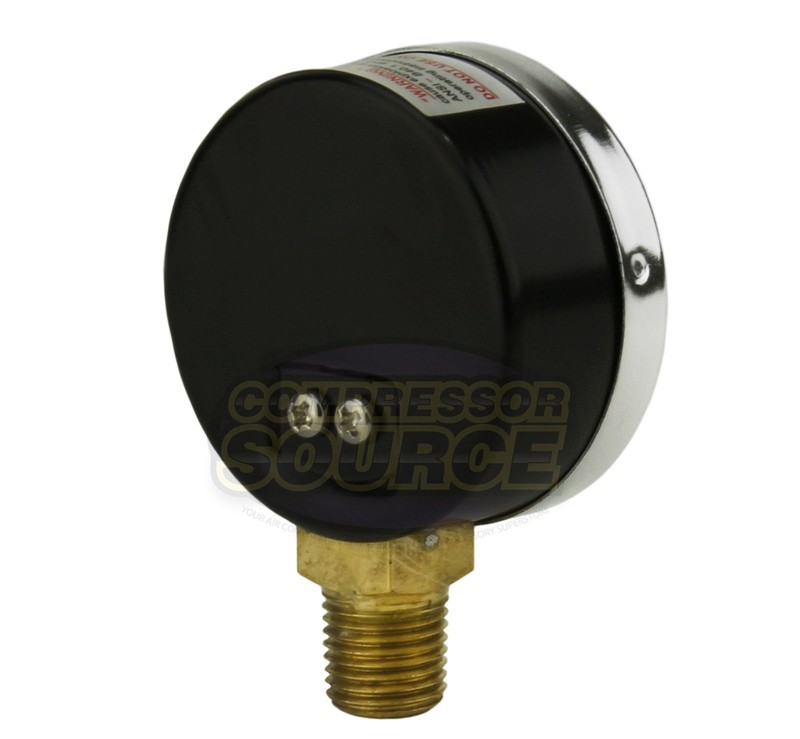

1/4" NPT Vacuum Air Pressure Gauge 2" Face 0 to -30 PSI Side Bottom Mount
Industrial grade vacuum pressure 0 to -30 PSI gauge. This gauge measures vacuum pressure from 0 to -30 PSI. This air pressure gauge is solid steel construction with a chrome front bezel and a 2" face. This gauge has 1/4" NPT male solid brass threads which come out the side/bottom of the gauge. This gauge has number markings at 0, -5, -10, -15, -20, -25, and -30 PSI as well as BAR markings with individual hash marks in between for accurate measurement.
Specifications
| Brand | Unbranded |
| MPN | 101D-204A |
| Country Of Origin | China |
| Maximum Pressure | 30 psi (2.1 bar) |
| Mounting Position | Side/Bottom Mount |
| Connection Diameter | 1/4 in |
| Face Diameter | 2 in (50.8 mm) |
| Unit Type | Unit |
| Type | Pressure Gauge |
| Model | 101D-204A |
| UPC | 685650066868 |
Industrial grade vacuum pressure 0 to -30 PSI gauge. This gauge measures vacuum pressure from 0 to -30 PSI. This air pressure gauge is solid steel construction with a chrome front bezel and a 2″ face. This gauge has 1/4″ NPT male solid brass threads which come out the side/bottom of the gauge. This gauge has number markings at 0, -5, -10, -15, -20, -25, and -30 PSI as well as BAR markings with individual hash marks in between for accurate measurement.
