1/5PCS PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog

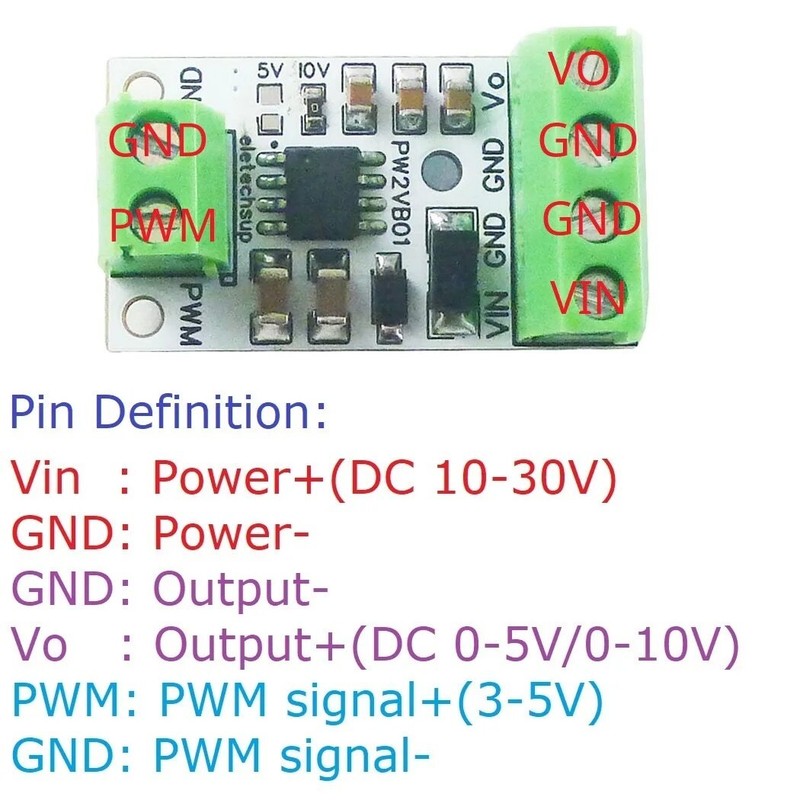

Product Title: PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog for Arduiuo MEGA2560 PLC Raspberr Pi ESP32 NodeMCU Product List: 1PCS PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog Features: Working voltage: 10V-30V (Recommended 12V/24V) Working current: <2mA PWM Duty cycle: 0%-100% PWM Frequency: 50Hz to 50KHz PWM Level: 3.3V / 5V Output voltage range: 0-5V/0-10V Output voltage error: < 1% Output voltage linearity error <0.5% Maximum drive current capability: 15MA (DC 12V), 20MA (DC 24V) Startup time: <2ms Operating temperature: -40°C to 85°C Size : 29.5 x 16.5 x 6mm Weight: 2.2g(Only Board) ;4.5g(With Terminal) Typical Application: PWM to 0-5V/0-10V Output for Arduino UNO MEGA PRO DUE DAC for Raspberr Pi 2 3B+ PLC analog IO expansion board Motor speed regulation, LED dimming Inverter, power supply Industrial analog signal isolation Wiring diagram: PW2VB01 input PWM signal with 0%-100% duty cycle, and linearly convert it into 0-5V or 0-10V analog voltage output. Example 1: If a 50% duty cycle PWM signal is input, PW1VA0 outputs 2.5V (0-5V version)/outputs 5V (0-10V version) Example 2: If output duty cycle 75% PWM signal, PW1VA0 output 3.75V (0-5V version) / output 7.5V (0-10V version) Pin description: Vin : Power+ GND: Power- GND: Output- Vo : Output+ PWM: PWM signal+ GND: PWM signal-
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Brand | eletechsup |
| Type | PW2VB01 |
Product Title: PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog for Arduiuo MEGA2560 PLC Raspberr Pi ESP32 NodeMCU Product List: 1PCS PWM to DAC Converter Input Pulse Signal Output 0-5V/0-10V Voltage Analog Features: Working voltage: 10V-30V (Recommended 12V/24V) Working current: <2mA PWM Duty cycle: 0%-100% PWM Frequency: 50Hz to 50KHz PWM Level: 3.3V / 5V Output voltage range: 0-5V/0-10V Output voltage error: < 1% Output voltage linearity error <0.5% Maximum drive current capability: 15MA (DC 12V), 20MA (DC 24V) Startup time: <2ms Operating temperature: -40°C to 85°C Size : 29.5 x 16.5 x 6mm Weight: 2.2g(Only Board) ;4.5g(With Terminal) Typical Application: PWM to 0-5V/0-10V Output for Arduino UNO MEGA PRO DUE DAC for Raspberr Pi 2 3B+ PLC analog IO expansion board Motor speed regulation, LED dimming Inverter, power supply Industrial analog signal isolation Wiring diagram: PW2VB01 input PWM signal with 0%-100% duty cycle, and linearly convert it into 0-5V or 0-10V analog voltage output. Example 1: If a 50% duty cycle PWM signal is input, PW1VA0 outputs 2.5V (0-5V version)/outputs 5V (0-10V version) Example 2: If output duty cycle 75% PWM signal, PW1VA0 output 3.75V (0-5V version) / output 7.5V (0-10V version) Pin description: Vin : Power+ GND: Power- GND: Output- Vo : Output+ PWM: PWM signal+ GND: PWM signal-
