#10-32 - Phillips Pan Head Machine Screws - Steel w/ Black Oxide SAE Fine Inch

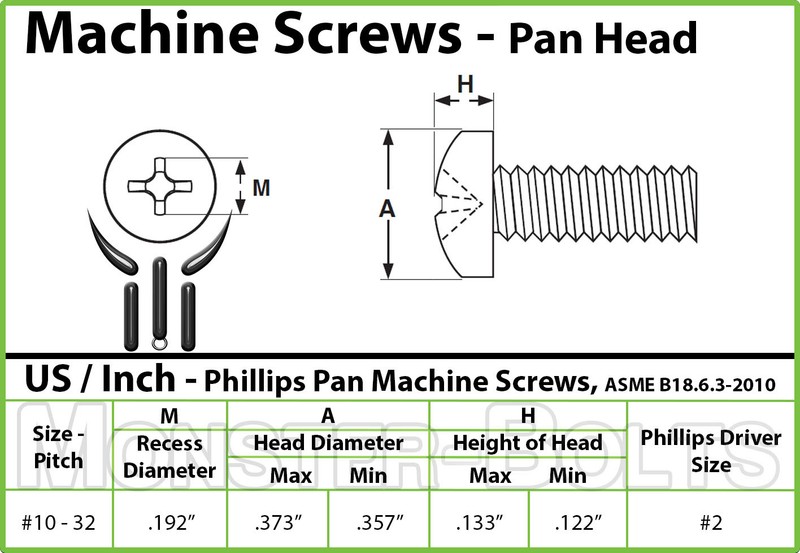

This listing is for new steel #10-32 Phillips PAN HEAD Machine Screws with a Black Oxide and Oil finish. Diameter : #10 / 3/16"Thread Pitch : 32 TPI - UNC / Fine ThreadLength : See Diagram to RightDrive : #2 PhillipsType : Pan Head Machine ScrewMatching Nut & Washers : #10-32 Available here System of Measurement : Inch (US) / SAEMaterial : Steel w/ Black Oxide CoatingSpecifications : ASME B18.6.3-2010 & SAE J82Tensile Strength : 60,000 psi min.Hardness : Rockwell B70-B1002 Available Lengths #10-32 x 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 7/8", 1", 1-1/4"
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Model | Phillips PAN HEAD |
| Head Style | Pan Head |
| Drive Style | Phillips |
| Material | Steel |
| Screw Size | #10 |
| Type | Machine Screws |
| Coating | Black Oxide |
| Thread Diameter (mm.) | 4.763 |
| System Of Measurement | Inch |
| MPN | ASME B18.6.3-2002 |
| Thread Diameter (in.) | 3/16in. |
| Fastener Type | Machine Screw |
| Drive Type | Phillips |
| Brand | MonsterBolts |
| Thread Size | #10 |
| Finish | Black Oxide |
This listing is for new steel #10-32 Phillips PAN HEAD Machine Screws with a Black Oxide and Oil finish. Diameter : #10 / 3/16″Thread Pitch : 32 TPI – UNC / Fine ThreadLength : See Diagram to RightDrive : #2 PhillipsType : Pan Head Machine ScrewMatching Nut & Washers : #10-32 Available here System of Measurement : Inch (US) / SAEMaterial : Steel w/ Black Oxide CoatingSpecifications : ASME B18.6.3-2010 & SAE J82Tensile Strength : 60,000 psi min.Hardness : Rockwell B70-B1002 Available Lengths #10-32 x 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 9/16″, 5/8″, 11/16″, 3/4″, 7/8″, 1″, 1-1/4″
