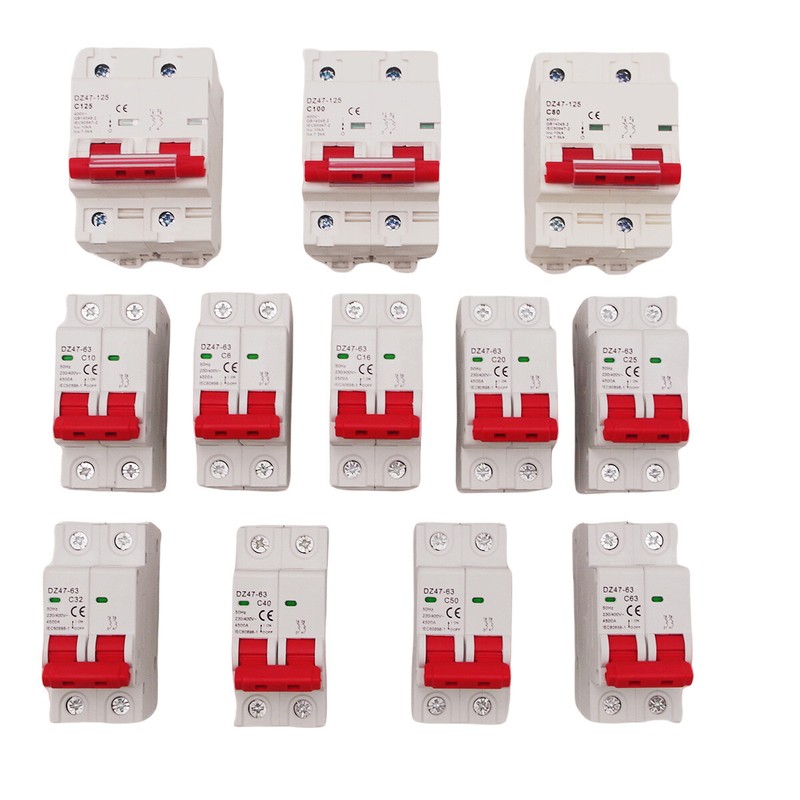

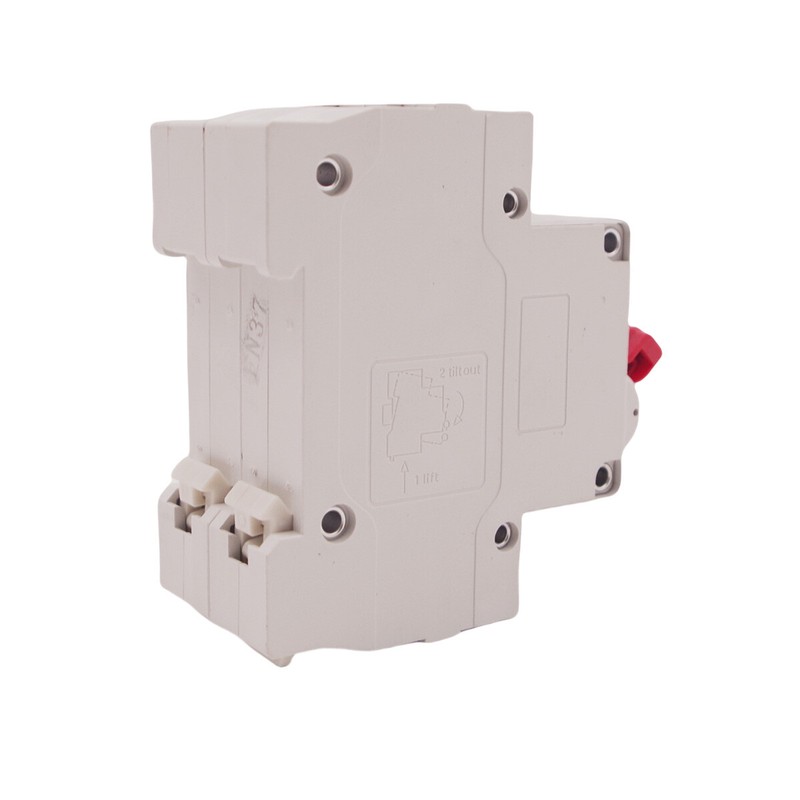

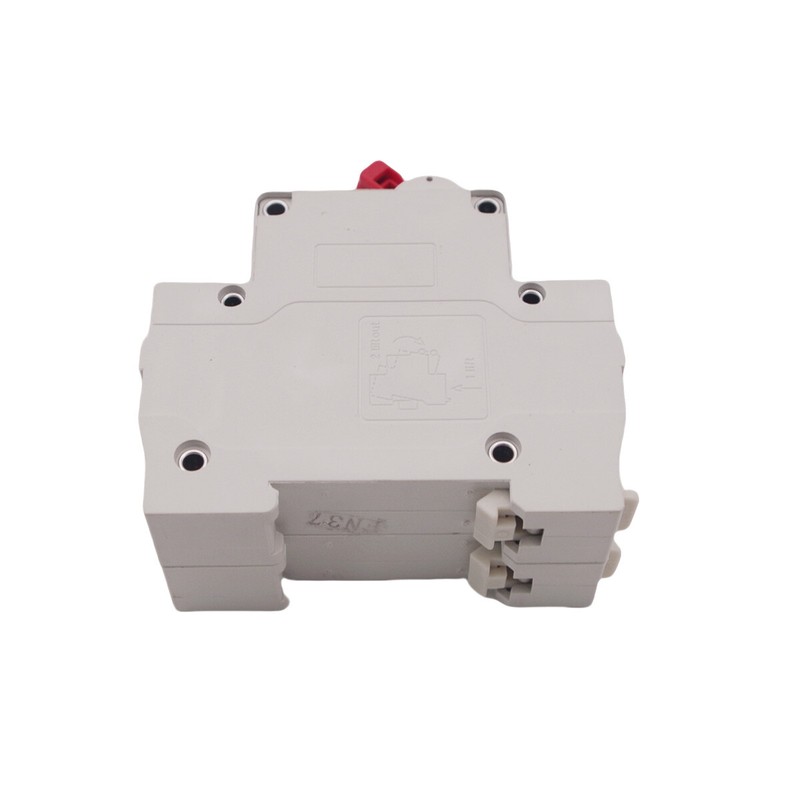

2P AC Mini Circuit Breaker AC MCB 2P 4.5kA 6/10/16/25/32/40/50/63A Din Rail
GENERAL Miniature circuit breaker is mainly used for protection against overload and short circuit. It also can be used for non-frequent on-and-off switch operation under normal circumstance. 1. In complicance with IEC/EN60898-1 2.Bilateral bus bar wiring capabilities to adapt to the wider use of premises. 3.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipment, wiring stronger SPECIFICATION Rated Current: 6A/10A/16A/20A/25A/32A/40A/50A/63A/80A/100A/125A Rated Voltage: 230V/400V~ Rated Circuit Breaking Capacity: 4.5kA Number of Pole : 1P Characteristics Curve: Curve C Mechanical Life: 4,000 Electrical Life: 10,000 INSTALLATION Ambient temperature: -5 ~ +40℃ Rail Mounting: 35mm DIN Rail Material: Plastic, Electric.
Specifications
| Size | 2P-6A |
| Item Length | 1.39 in |
| Smart Home Compatibility | Universal |
| Suitable For | Interior, Wall |
| Tripping Characteristics | Type AC |
| Control Style | Analog/Mechanical |
| Item Height | 3.23 in |
| Reset Actuator Type | Handle |
| Features | ON/OFF |
| Compatible Wire Gauge (AWG) | 11-15 |
| Item Width | 2.87 in |
| Mounting Style | DIN Rail, Screw |
| Maximum Amperage | 63A |
| Color | White |
| Current Rating | 6A-63A |
| Material | ABS/Plastic |
| Electrical Connection | Screw Terminal |
| Brand | Jaxvio |
| Operation Method | On/Off |
| Type | Main Breaker |
| Break Time | Instantaneous |
| IP Rating | IP20 |
| Model | GYM8-AC |
| Country/Region Of Manufacture | China |
| Voltage Rating (AC) | 230/400V |
| Certificate | CE,CB |
