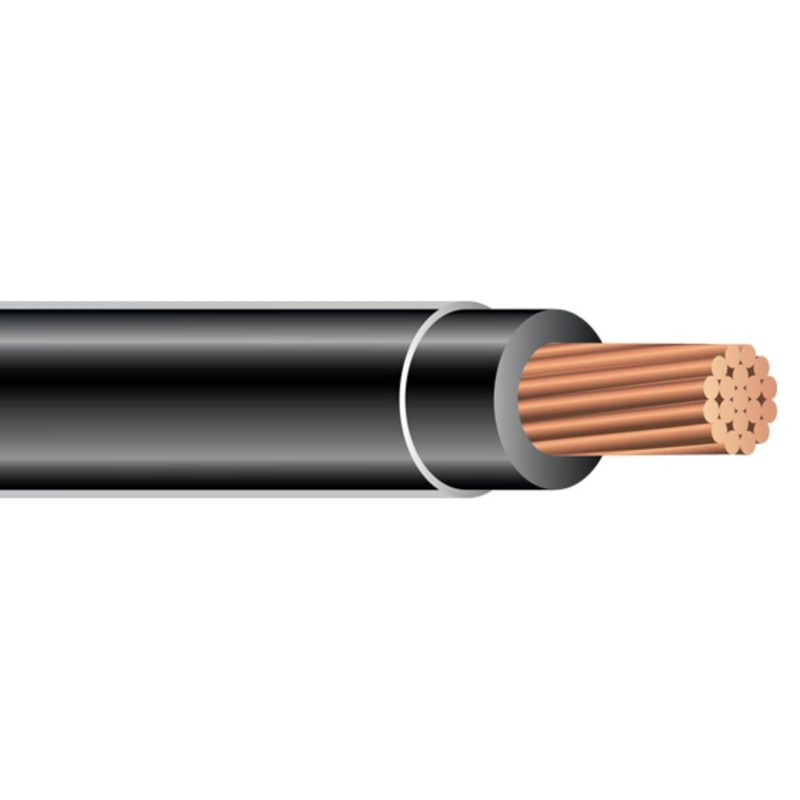

3 AWG Gauge Stranded Copper Building Wire– 600 Volt UL Listed Cut (50 FT)
Untitled DocumentStoreFeedbackFollow3 AWG Gauge Stranded Copper Building Wire– 600 Volt UL Listed Cut (50 FT)#3 THHN/THWN-2 WireCut to length – sold by the foot. Enter the desired footage in the QTY box.Minimum 1′ to maximum 5000′. Please call for longer put ups.Applications:Type THHN/THWN-2 building wire is intended for general purpose applications as defined by the National Electrical Code (NEC). Type THHN-THWN-2 is permitted for new construction or rewiring for 600-volt applications. Applications requiring Type THHN or THWN-2, the conductor is appropriate for use in wet or dry locations at temperatures not to exceed 90ºC or not to exceed 75ºC in oil or coolants. Applications requiring Type MTW conductor is appropriate for use in dry locations at 90ºC, or not to exceed 60ºC in wet locations or where exposed to oils or coolants. Applications requiring Type AWM conductor is appropriate for use at temperatures to not exceed 105ºC in dry locations.Also Known As:Copper wire, THWN, building wire, hook up wire, conduit wire, bathtub wire, lighting wire, nylon copper wire, construction cable, etc…Features:Nylon outer jacket for easy pulling. VW-1 rated 14 AWG – 8 AWG. All sizes are rated gasoline and oil-resistant II.Jacket:A tough, polyamide, Nylon outer covering per UL-1063 and UL-83.Standards:Underwriters Laboratories Standards UL-83, UL-1063, UL-758AWM Spec 1316, 1317, 1318, 1319, 1320, 1321ASTM Stranding Class B3, B8, B787Federal Specification A-A-59544Canadian Standards Association C22.2 No. 75NEMA WC70/ICEA S-95-658Institute of Electrical and Electronics EngineersConstruction:Conductors:Solid, uncoated copper conductors per ASTM-B3Stranded, uncoated copper conductors per ASTM-B3, ASTM-B787 and ASTM-B8Insulation:Color-coded Polyvinyl Chloride (PVC), heat and moisture-resistant, flame-retardant compound per UL-1063 and UL-83 AWG THHN/THWN-2 Specifications*: Size:3 AWGNumber of Strands:19Cross Section Area:26.7 mm2PVC Insulation Thickness (Conductor):1.020 mm / 0.040 inchesNylon Jacket Thickness:0.150 mm / 0.006 inchesOutside Diameter:8.74 mm / 0.344 inchesWeight:0.202 lbs per ftAllowable Ampacity:85 Amps at 60ºC / 100 Amps at 75ºC / 110 Amps at 90ºC*Data provided on this page is subject to change based on different manufacturers variances. Contact & Support You can always contact us directly here, we do our best to support our customers and answer any questions. Feel free to send us a message any time. ShippingMost orders are shipped within 12-48 Business Hours. This process is expedited by paying for your item immediately. We supply tracking information directly to your eBay account as soon as it's available. Payments PayPal is our preferred method of payment. Your PayPal account must be a Verified account. We collect Sales Tax in Illinois as required. © Paladin Distribution Inc.
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| MPN | 3BLK |
| Item Length | 50FT |
| Wire Gauge | 3 AWG (5.8 mm) |
| Sheath Color | Black |
| Brand | Paladin |
| Wire Style | Stranded |
| Voltage | 600 V |
| Conductor Material | Copper |
| Country/Region Of Manufacture | United States |
| Resistance Properties | Heat Resistant |
