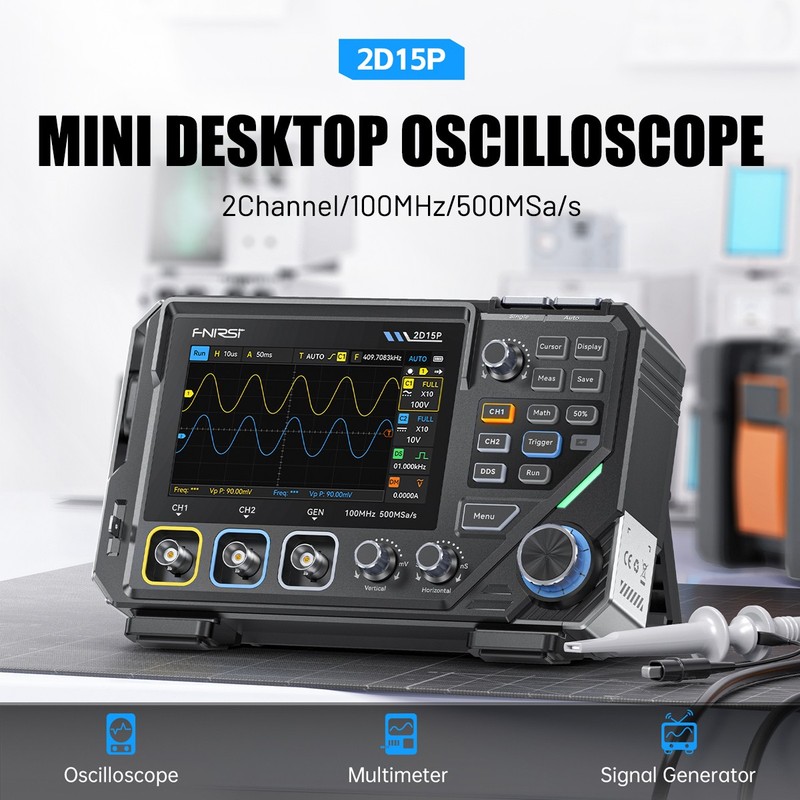

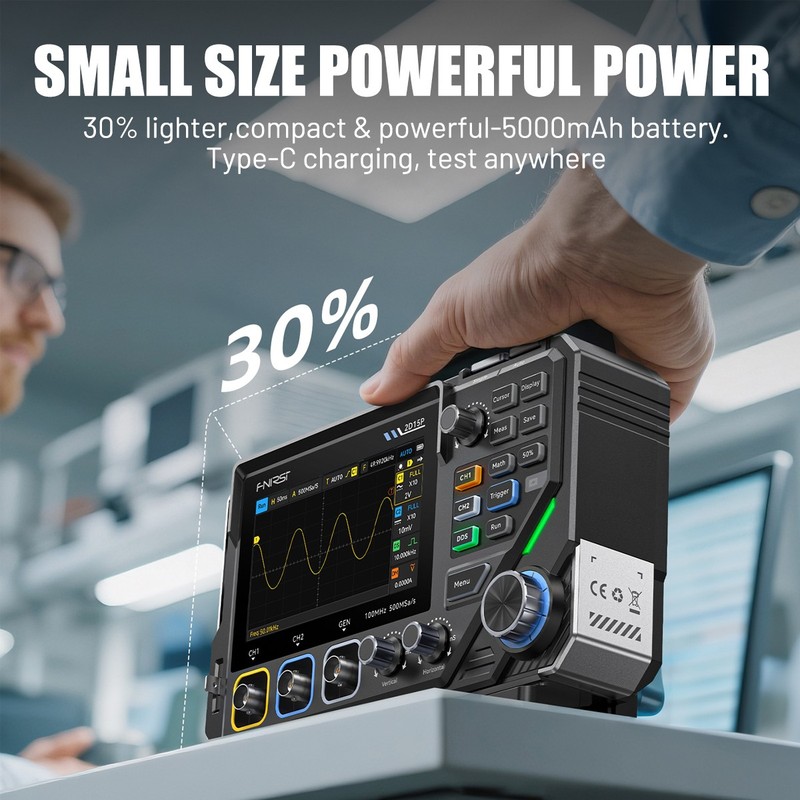

3 in 1 FNIRSI 2D15P 100Mhz Digital Oscilloscope Multimeter DDS Signal Generator
USD 179.98 USD
Model: 2D15P. 3.Built-in 10MHz Signal Generator: Outputs 9 waveform types including sine, square, triangle, DC, noise, and step signals. Adjustable amplitude and duty cycle make it ideal for circuit simulation and testing applications.
Specifications
| Afterglow | min/2s/5s/10s/20s/50s |
| Amplitude | 0.1-3.0Vpp |
| Analog Bandwidth | 100 MHz |
| Battery | 5000mAh(Rechargeable ) |
| Brand | Unbranded |
| Coupling | AC/DC |
| Cursor Measurement | Supported |

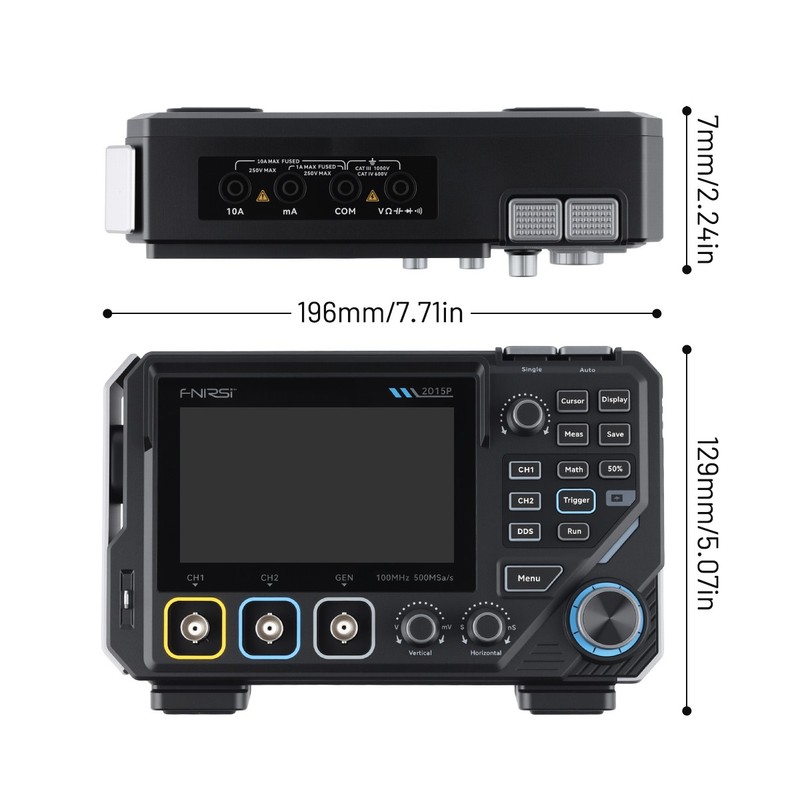

| Dimensions | 196mm × 129mm × 57mm |
| Duty Cycle | 0-100% |
| Input Impedance | 1MΩ |
| Maximum Bandwidth | 100 MHz |
| Maximum Measured Voltage | 800V (X10 range) |
| Maximum Real-Time Sampling Rate | 500 MSa/s |
| Model | 2D15P |
| Number Of Channels | Dual |
| Operations | 6 basic operations |
| Oscilloscope Type | Digital Oscilloscope |
| Sampling Rate | 500 MSa/s |
| Storage Depth | 10K, 100K, 1M |
| Time Base Range | 5ns to 50s |
| Trigger Mode | Auto, Normal, Single |
| Vertical Sensitivity | 10mV to 10V/div |
| Waveform Export | Supported |
| Waveform Screenshot Saving | Supported |
Model: 2D15P. 3.Built-in 10MHz Signal Generator: Outputs 9 waveform types including sine, square, triangle, DC, noise, and step signals. Adjustable amplitude and duty cycle make it ideal for circuit simulation and testing applications.
