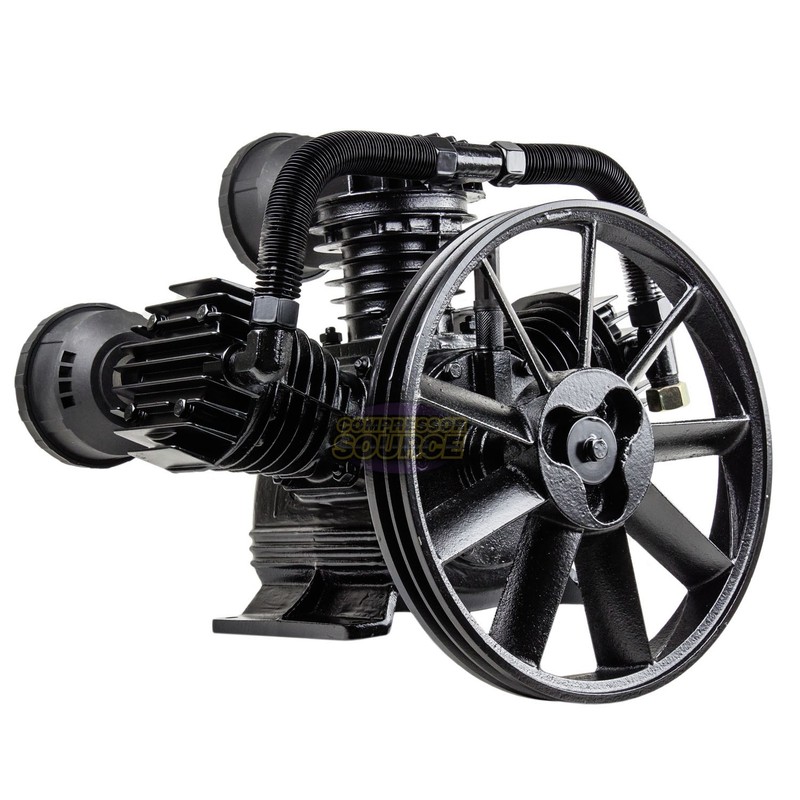

5 - 7.5 HP Replacement Air Compressor Pump Single Stage 3 Cylinder 17.5 CFM Max
Three cylinder cast iron single stage air compressor pump. This is a 5 - 7.5 horsepower pump that will deliver 16.94 CFM at 900 RPM, with a max RPM of 1000. This pump is most commonly used on compressor tanks of 60 - 80 gallons in size and can be used with 220-volt 5 - 7.5 horsepower electric motors. To verify your motor is large enough, it should be at least 20 amps or higher at 220 volts and 5 - 7.5 HP.
Specifications
| Brand | Compressor Source |
| Type | Piston Compressor |
| Power Source | Corded Electric |
| MPN | CS3080 |
| Color | Black |
| Country Of Origin | China |
| Model | CS3080 |
| Item Width | 16.000 |
| Item Length | 24.000 |
| Item Height | 20.000 |
| Voltage | 220 V |
| Tank Capacity | 65.1-100 gal |
| Horse Power | 5 to 7.5 HP |
| Lubrication Type | Oil-Lubricated |
| Tank Material | Cast Iron |
| Flow Rate | Unknown |
| Item Weight | 83.5 |
| Unit Type | Unit |
| Style | 5 - 7.5 HP Pump |
| Features | Single Stage Pump |
| Design | Single Stage Pump |
| UPC | 685650087788 |
Three cylinder cast iron single stage air compressor pump. This is a 5 – 7.5 horsepower pump that will deliver 16.94 CFM at 900 RPM, with a max RPM of 1000. This pump is most commonly used on compressor tanks of 60 – 80 gallons in size and can be used with 220-volt 5 – 7.5 horsepower electric motors. To verify your motor is large enough, it should be at least 20 amps or higher at 220 volts and 5 – 7.5 HP.
