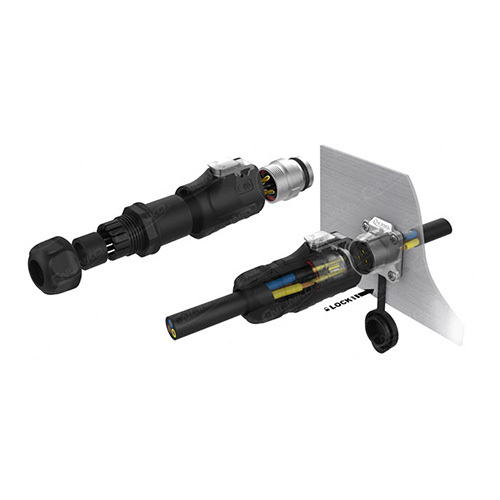

CNLINKO 12 Pin Power Signal Connector Female Socket Outdoor Waterproof IP67 M20
We are the only authorized eBay retailer for "CNLINKO" brand connector products, with complete warranty. Selling Item Model Number: LP-20-J12SX-03-401 Pairing Plug Model Number: LP-20-C12PE-01-022 Features: ● 12 Cores in line with the diversity of industrial demand, signal and power compatible match.● Socket and internal components zinc alloy material, with a complete electromagnetic and radio frequency interference protection.● Gold-plated contacts, high-strength corrosion resistance and electrical conductivity, effective response to temperature changes in current.● PBT material shell, stable electrical performance, high strength and resistance to pressure, high temperature resistance, anti-explosion, anti-corrosive.● Unique docking design, a solid line extends infinitely long● 4-hole mounting, solid flawless, thread type transposion installation, suitable for circular openings industrial installation.● 5A rms rated current● Protection Level: IP67 Specification: Cable specification0.15m㎡～0.2m㎡/26-24 AWGDiameter range Φ5.5mm～Φ7mmContact diameter × numberΦ1.0x12Rated Current (A)5AOperating voltage (AC.V.rms)400V Contact resistance<5mΩTemperature rise /Withstanding Voltage (AC.V) 1 minute1500VInsulation resistance＞500MΩProtection level IP67Durability≥500 timesWorking temperature-40℃～80℃Connecting modePlug/unplugAssembly wireSolderHousing, the insulating partsHigh-performance engineering plastics Hardware Zinc Alloy (pearl hard chrome) Copper needlesCopper alloy (gold-plated 4U) Waterproof circleSilica gelFlammability ratingUL94-V0 LP-20 Series Specification Sheet
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Gender | Female |
| Compatible Wire Gauge (AWG) | 26-24 AWG |
| Country/Region Of Manufacture | China |
| Current Type | AC/DC |
| Pairing Plug | LP-20-C12PE-01-022 |
| Connecting Mode | Plug/Unplug |
| IP Rating | IP67 |
| Certificate | UL, CE, RoHS |
| Contact Material | Copper |
| MPN | LP-20-J12SX-03-401 |
| Shell Size | M20 |
| Model | LP-20-J12SX-03-401 |
| Minimum Operating Temperature (Actual) | -40°C |
| Maximum Operating Temperature (Actual) | 80°C |
| Minimum Operating Temperature (Nominal) | -40°C |
| Maximum Operating Temperature (Nominal) | 80°C |
| Body Material | ABS & Zinc |
| Brand | CNLINKO |
| Termination Type | Solder |
