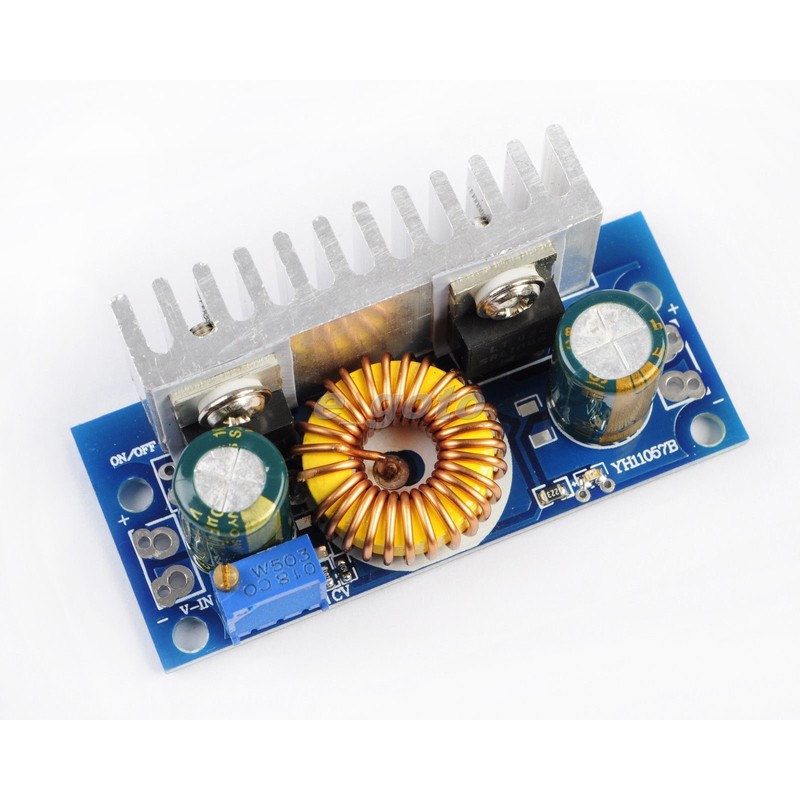

DC-DC Boost Step Up Converter 4.5-32V to 5-42V 5A Adjustable Power Supply Module
DC-DC Boost Step Up Converter 4.5-32V In to 5-42V Out 5A Adjustable Power Supply Module This versatile DC-DC boost power supply / converter module steps up any input voltage from 4.5V to 32V to any output voltage from 5V to 42V at up to 5A current. It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages. Specifications:Non-isolated step up (boost) DC-DC converter moduleInput voltage: 4.5V-32VInput current: 0A-5AOutput voltage: 5V-42VOutput current: 0A-5AMaximum input and output power: Limited by 5A maximum current. For example, with 20V input at 5A, the maximum output power would be 100 Watts (20V x 5A)Working temperature: -40℃ ~ +85℃. If ambient temperature exceeds 40C, derate power or use a cooling fanWorking frequency: 180KHzTransfer efficiency: 94% (max)Short circuit protection: YesOver temperature protection: YesInput reverse protection: NoPCB Dimensions: 60x25mmOverall Dimensions (Including Heatsink): 2.4x1.1x0.8 inches (60x29x20mm) LxWxHWeight: 1.4 ounces (40 grams)Applications:DIY adjustable output vehicle power supply. Provide 12V input, the output voltage can be continuously adjusted from 5V to 42V (output voltage cannot be lower than the input voltage).Universal car laptop power supply. Provide 12V input, output voltage is adjustable to your laptop's input voltage. Can easily drive dual-core or quad-core notebooks at 19V and up to 5A output current.Boost Charger, to convert your car's 12V power to greater than 12V, such as 18V or 24V.Power supply for your electronic devices. Note: Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load. Package Includes:1X DC-DC Boost Step Up Converter 4.5-32V to 5-42V 5A Adjustable Power Apply Module2X screw terminalsLink to online documentation & usage guide Get it faster! Stocks and ships from our US Colorado office for quick delivery. We provide FREE USPS First Class Shipping with Tracking - Not Economy Shipping
Specifications
| Return Shipping Will Be Paid By | Seller |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Country/Region Of Manufacture | China |
| Plug Type | Terminal block |
| Device Function | Voltage Converter |
| Product Type | Power Converter |
| Mounting Style | Stand Alone |
| Output Voltage Rating (DC) | 5 V to 42 V |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Installation Area | Indoor |
| Maximum Operating Temperature | 85 °C (185 °F) |
| Inrush Current Rating | 5 A |
| MPN | EM-POWER-0020 |
| Nominal Voltage Rating (DC) | 4.5 V to 32 V |
| Nominal Current Rating | 5 A |
| Brand | Envistia |
| Model | 5A Step Up Converter |
| Conversion Direction | Step-Up |
| Input Voltage Range | 4.5V to 32V |
| Switching Frequency | 180KHz |
| Output Voltage Range | 5V to 42V adjustable |
| Current Conversion | DC to DC |
DC-DC Boost Step Up Converter 4.5-32V In to 5-42V Out 5A Adjustable Power Supply Module This versatile DC-DC boost power supply / converter module steps up any input voltage from 4.5V to 32V to any output voltage from 5V to 42V at up to 5A current. It is especially useful for automotive 12V applications, where standard 12V battery power can be boosted to 19V for use as a laptop computer power supply, or to 18V or 24V for other applications requiring higher voltages. Specifications:Non-isolated step up (boost) DC-DC converter moduleInput voltage: 4.5V-32VInput current: 0A-5AOutput voltage: 5V-42VOutput current: 0A-5AMaximum input and output power: Limited by 5A maximum current. For example, with 20V input at 5A, the maximum output power would be 100 Watts (20V x 5A)Working temperature: -40℃ ~ +85℃. If ambient temperature exceeds 40C, derate power or use a cooling fanWorking frequency: 180KHzTransfer efficiency: 94% (max)Short circuit protection: YesOver temperature protection: YesInput reverse protection: NoPCB Dimensions: 60x25mmOverall Dimensions (Including Heatsink): 2.4×1.1×0.8 inches (60x29x20mm) LxWxHWeight: 1.4 ounces (40 grams)Applications:DIY adjustable output vehicle power supply. Provide 12V input, the output voltage can be continuously adjusted from 5V to 42V (output voltage cannot be lower than the input voltage).Universal car laptop power supply. Provide 12V input, output voltage is adjustable to your laptop’s input voltage. Can easily drive dual-core or quad-core notebooks at 19V and up to 5A output current.Boost Charger, to convert your car’s 12V power to greater than 12V, such as 18V or 24V.Power supply for your electronic devices. Note: Set the output voltage to the desired level using a voltmeter before connecting it to your equipment or load. Package Includes:1X DC-DC Boost Step Up Converter 4.5-32V to 5-42V 5A Adjustable Power Apply Module2X screw terminalsLink to online documentation & usage guide Get it faster! Stocks and ships from our US Colorado office for quick delivery. We provide FREE USPS First Class Shipping with Tracking – Not Economy Shipping
