Marathon G044A Motor 1/4 HP 1725 Rpm 3PH 230/460 Volt 48 Frame 048T17D11009

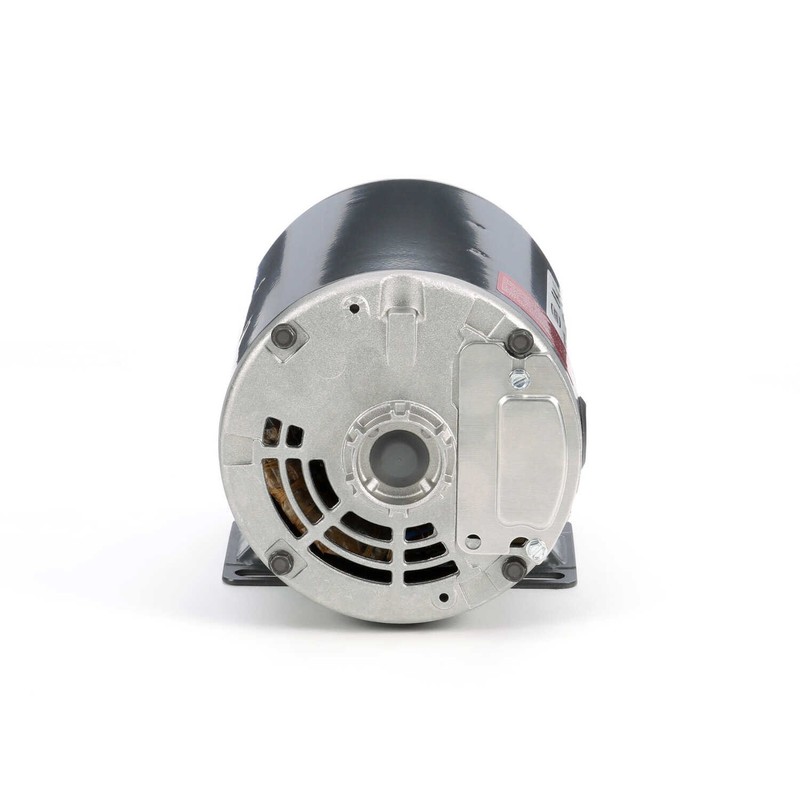

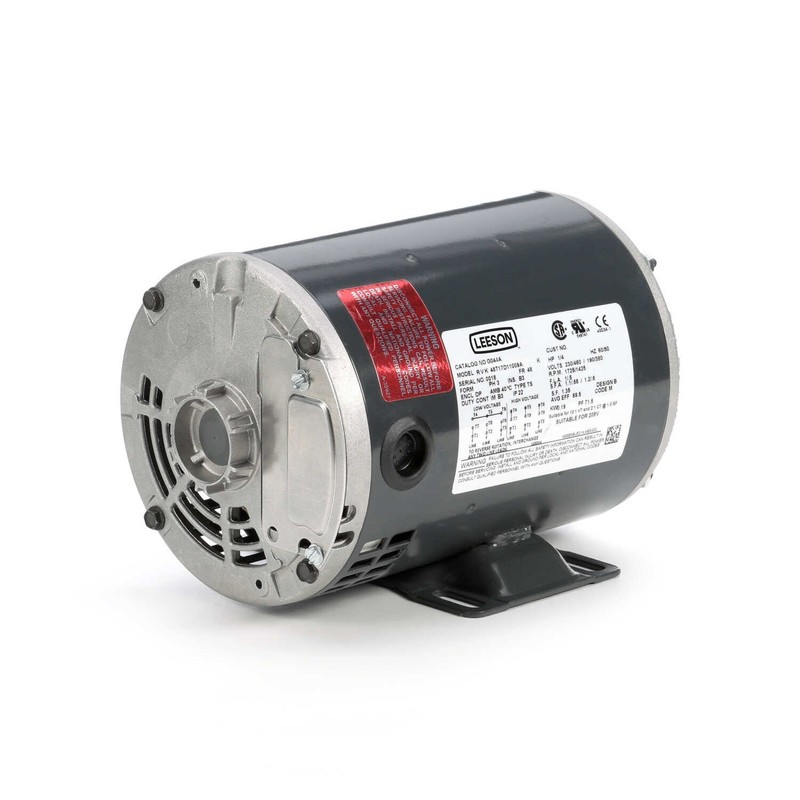

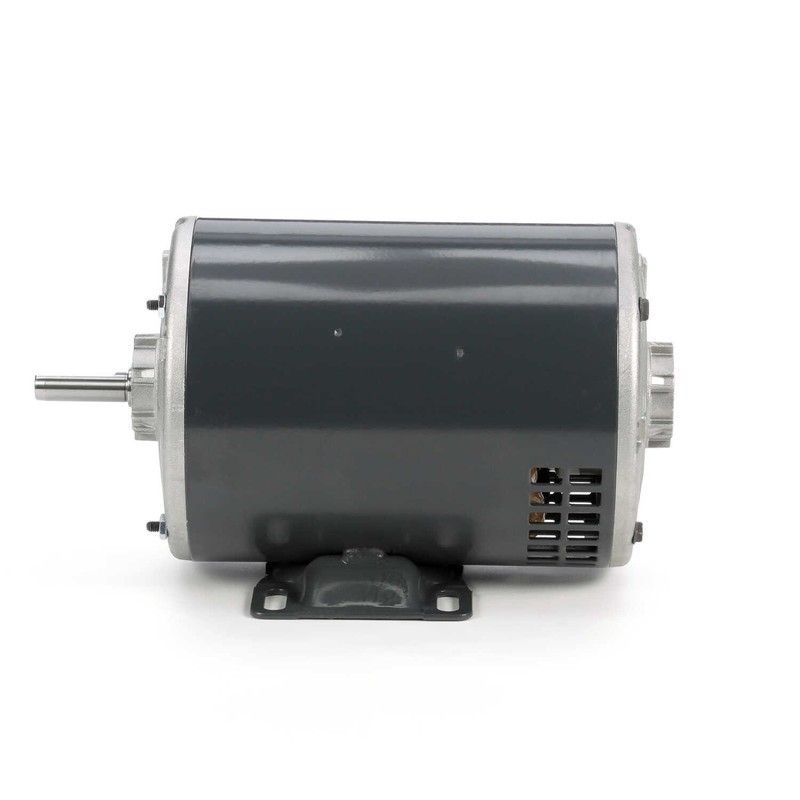

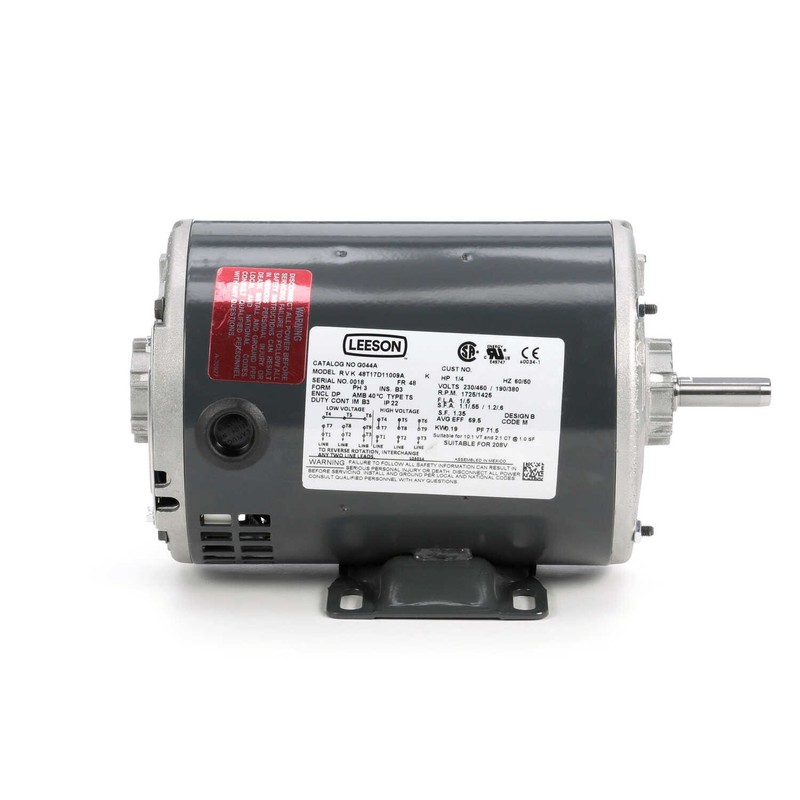

Marathon G044A Motor 1/4 HP 1725 Rpm 3PH 230/460 Volt 48 Frame 048T17D11009 gallery

Marathon G044A Motor 1/4 HP 1725 Rpm 3PH 230/460 Volt 48 Frame 048T17D11009

USD 260.97 USD

SKU: 7TGfR7h2

Brand: Marathon

MPN: 048T17D11009

GTIN: 722856070999

Condition: New

Speed: 1725 & 1425 rpm Service Factor: 1.35 & 1.35. Spec's from Marathon/ Leeson ;. Phase: 3 Output HP: 0.25 & 0.25 Hp. Ambient Temperature: 40 °C Frequency: 60 & 50 Hz. Current: 1/.5 & 1/.5 A Power Factor: 71.5.

Tags: 048T17D11009 1.35 1/2 in 1/4" 208 V, 230 V, 460 V 4.044 60 hz 722856070999 B (Max 266°F) G044A Induction/Asynchronous Marathon ODP (Open Drip-Proof) Reversible Three Phase

Categories: Drives & Motor Controls

Specifications

Rated Load (HP)	1/4
AC Frequency Rating	60 Hz
Enclosure Type	ODP (Open Drip-Proof)
AC Motor Type	Induction/Asynchronous
Shaft Diameter	1/2 in
MPN	048T17D11009
Insulation Class	B (Max 266°F)
Brand	Marathon
Reversible/Non-Reversible	Reversible
Service Factor	1.35
Model	G044A
Nominal Rated Input Voltage	208 V, 230 V, 460 V
AC Phase	Three Phase
UPC	722856070999

Speed: 1725 & 1425 rpm Service Factor: 1.35 & 1.35. Spec’s from Marathon/ Leeson ;. Phase: 3 Output HP: 0.25 & 0.25 Hp. Ambient Temperature: 40 °C Frequency: 60 & 50 Hz. Current: 1/.5 & 1/.5 A Power Factor: 71.5.
