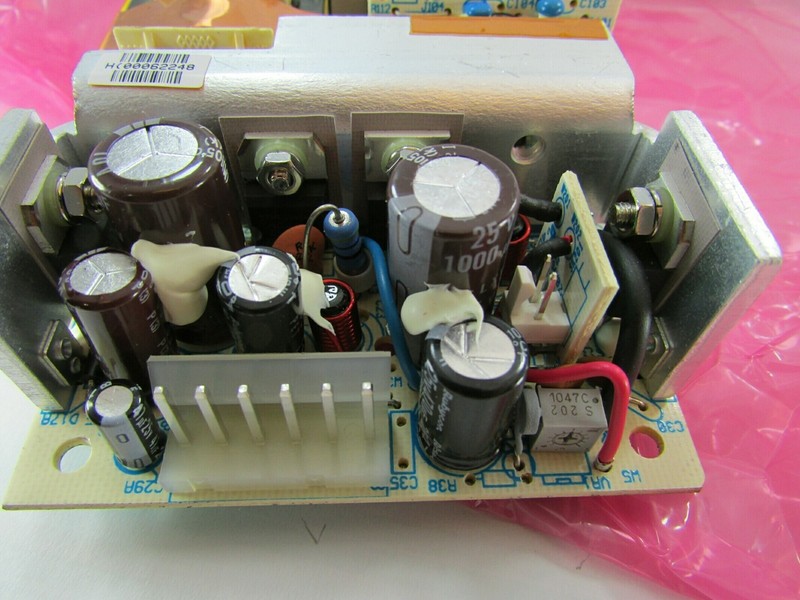

New Artesyn 40W Switching Power Supplies 85 - 264 VAC In, 5 12 -5 VDC Out LPT24
4108SF1C.61 New Astec (now Artesyn) 40W Max. Open Frame Switching Power Supplies, 85 - 264 VAC In, Three Outputs (5 VDC, 12VDC, and -5 VDC) Out, Part Number LPT24. Each bid quantity is for One (1) Power Supply. You may bid / buy any number, up to the total quantity available above. These were purchased at an electronics wholesale company liquidation earlier this year, and they are brand new in the original factory static bags and protective cardboard sleeves. According to the manufacturer: Manufacturer: Artesyn Embedded Power Series: LPT25 (25W) Type: Open Frame Number of Outputs: 3 Voltage - Input: 85 ~ 264 VAC Voltage - Output 1: 5V Voltage - Output 2: 12V Voltage - Output 3: -5V Current - Output (Max): 3A, 1.5A, 500mA Power (Watts): 25W (40W with Forced Air) Applications: ITE (Commercial) Efficiency: 70% Operating Temperature: 0°C ~ 70°C (With Derating) Features: Adjustable Output, DC Input Capable, Remote Sense, Universal Input Mounting Type: Chassis Mount Size / Dimension: 5.00" L x 3.00" W x 1.14" H (127.0mm x 76.2mm x 29.0mm) Approval Agency: CB, CE Minimum Load Required: Yes - Universal input - 3” x 5” footprint - Less than 1U high - Remote sense on main output - Built-in EMI filter - Low output ripple - Adjustable main output - Overvoltage protection - Overload protection - 110 KHz switching frequency - LPX40 enclosure kit available - RoHS compliant Safety - TUV 60950 11774-3336-1241 (LC#84936) - UL UL60950 E132002 - cUL 60950 LR53982C - NEMKO EN 60950/EMKO-TUE P95100411 (74-sec) 203 - CB Certificate and report 1569, 1570, 1571, 1572 - CE Mark (LVD) Electrical Specifications Input Input range 85 - 264 Vac; 120 - 300 Vdc Frequency 47 - 440 Hz Inrush current 550,000 hours at full load and 25 °C ambient conditions LPT24 5V Output Minimum Load: 0.3A Maximum Load with Convection Cooling: 3A Maximum Load with 30CFM Forced Air: 4A Peak Load1: 5A Regulation2: ±2% Ripple P/P(PARD)3: 50 mV 12V Output Minimum Load: 0.1A Maximum Load with Convection Cooling: 1.5A Maximum Load with 30CFM Forced Air: 2A Peak Load1: 3A Regulation2: ±5% Ripple P/P(PARD)3: 120 mV -5V Output Minimum Load: 0 A Maximum Load with Convection Cooling: 0.5 A Maximum Load with 30CFM Forced Air: 0.7 A Peak Load1: 1 A Regulation2: ±5% Ripple P/P(PARD)3: 50 mV 1. Peak current lasting
Specifications
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Return Shipping Will Be Paid By | Buyer |
| Country/Region Of Manufacture | Philippines |
| Plug Type | Molex |
| Mounting Style | Chassis |
| Minimum Operating Temperature (Nominal) | 0 C |
| Nominal Power Rating | 40 W |
| Efficiency | 70 % |
| Maximum Operating Temperature (Nominal) | 70 C |
| MPN | LPT24 |
| Output Voltage | 12 V |
| Nominal Input Voltage Rating (AC) | 85 - 264 VAC |
| Brand | Artesyn |
| Series | LPT25 |
| SELLER LOCATION | USA |
4108SF1C.61 New Astec (now Artesyn) 40W Max. Open Frame Switching Power Supplies, 85 – 264 VAC In, Three Outputs (5 VDC, 12VDC, and -5 VDC) Out, Part Number LPT24. Each bid quantity is for One (1) Power Supply. You may bid / buy any number, up to the total quantity available above. These were purchased at an electronics wholesale company liquidation earlier this year, and they are brand new in the original factory static bags and protective cardboard sleeves. According to the manufacturer: Manufacturer: Artesyn Embedded Power Series: LPT25 (25W) Type: Open Frame Number of Outputs: 3 Voltage – Input: 85 ~ 264 VAC Voltage – Output 1: 5V Voltage – Output 2: 12V Voltage – Output 3: -5V Current – Output (Max): 3A, 1.5A, 500mA Power (Watts): 25W (40W with Forced Air) Applications: ITE (Commercial) Efficiency: 70% Operating Temperature: 0°C ~ 70°C (With Derating) Features: Adjustable Output, DC Input Capable, Remote Sense, Universal Input Mounting Type: Chassis Mount Size / Dimension: 5.00″ L x 3.00″ W x 1.14″ H (127.0mm x 76.2mm x 29.0mm) Approval Agency: CB, CE Minimum Load Required: Yes – Universal input – 3” x 5” footprint – Less than 1U high – Remote sense on main output – Built-in EMI filter – Low output ripple – Adjustable main output – Overvoltage protection – Overload protection – 110 KHz switching frequency – LPX40 enclosure kit available – RoHS compliant Safety - TUV 60950 11774-3336-1241 (LC#84936) – UL UL60950 E132002 – cUL 60950 LR53982C – NEMKO EN 60950/EMKO-TUE P95100411 (74-sec) 203 – CB Certificate and report 1569, 1570, 1571, 1572 – CE Mark (LVD) Electrical Specifications Input Input range 85 – 264 Vac; 120 – 300 Vdc Frequency 47 – 440 Hz Inrush current 550,000 hours at full load and 25 °C ambient conditions LPT24 5V Output Minimum Load: 0.3A Maximum Load with Convection Cooling: 3A Maximum Load with 30CFM Forced Air: 4A Peak Load1: 5A Regulation2: ±2% Ripple P/P(PARD)3: 50 mV 12V Output Minimum Load: 0.1A Maximum Load with Convection Cooling: 1.5A Maximum Load with 30CFM Forced Air: 2A Peak Load1: 3A Regulation2: ±5% Ripple P/P(PARD)3: 120 mV -5V Output Minimum Load: 0 A Maximum Load with Convection Cooling: 0.5 A Maximum Load with 30CFM Forced Air: 0.7 A Peak Load1: 1 A Regulation2: ±5% Ripple P/P(PARD)3: 50 mV 1. Peak current lasting
